90*140*24MM 6018ZZ 2RS OPEN CHROME STEEL DEEP GROOVE BALL BEARING

Silurian Bearing Factory
Contact Now

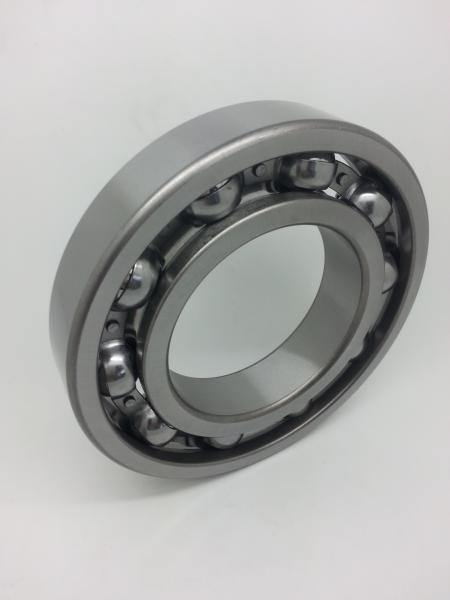

90*140*24MM 6018ZZ 2RS OPEN CHROME STEEL DEEP GROOVE BALL BEARING

Brand Name : SILURIAN

Model Number : 6018ZZ

Certification : ISO9001:2008

Place of Origin : China,liaocheng

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500 per day

Delivery Time : 5-8 work days

Packaging Details : Plastic tube+individual box+carton

Type : Ball

Seals type : ZZ 2RS OPEN

Bore size : 1 - 20 mm

Precision rating : P0 P6 P5 P4 P2

Structure : Deep Groove

Number of row : Single Row

Contact Now

6018 ZZ 2RS OPEN Type Deep Groove Ball Bearing 6000 Series 6018 Sizes

The basic type of deep groove ball bearing consists of an outer ring, an inner ring, a set of steel balls and a set of retainers. There are two types of deep groove ball bearing, single row and double row, deep groove ball structure also divided into two types of sealed and open structure, open type refers to the bearing without a sealed structure, sealed deep groove ball is be divided into dustproof seal and oil-proof seal. The dustproof seal cover material is steel sheet stamping, which only plays a simple role in preventing dust from entering the bearing raceway. The oil-proof type is contact oil seal, which can effectively prevent the grease from spilling inside the bearing.

Product Introduction:
Deep groove ball bearing 6048 are particularly versatile. They are suitable for high and very high speeds, accommodate radial and axial loads in both directions and require little maintenance. Deep groove ball bearings 6048 are the most widely used bearing type, they are available in many designs, variants and sizes.

Sensor bearing units
High temperature bearings and bearing units
Hybrid bearings


Application:
Deep groove ball bearings 6048 are widely used in gearboxes, instrumentation, motors, household appliances, internal combustion engines, transportation vehicles, agricultural machinery, construction machinery, construction machinery, roller skates, yo-yo balls etc.

Type
Deep groove ball bearing
Model
6018
Brand
YNR/OEM
d (mm)
240 mm
Material
Chrome steel
D (mm)
360 mm
Seal type
Open
C (mm)
56 mm
Precision rate
P0, P6 or as requested
Payment Term
30% T/T In Advance, 70% T/T before shipment

BEARING SERIES:

Bearing No. Seal type d D T Weight
6000 Z/2Z/RS/2RS 10 26 8 0.019
6001 Z/2Z/RS/2RS 12 28 8 0.022
6002 Z/2Z/RS/2RS 15 32 9 0.030
6003 Z/2Z/RS/2RS 17 35 10 0.040
6004 Z/2Z/RS/2RS 20 42 12 0.069
6005 Z/2Z/RS/2RS 25 47 12 0.080
6006 Z/2Z/RS/2RS 30 55 13 0.116
6007 Z/2Z/RS/2RS 35 62 14 0.155
6008 Z/2Z/RS/2RS 40 68 15 0.185
6009 Z/2Z/RS/2RS 45 75 16 0.230
6010 Z/2Z/RS/2RS 50 80 16 0.250
6011 Z/2Z/RS/2RS 55 90 18 0.362
6012 Z/2Z/RS/2RS 60 95 18 0.385
6013 Z/2Z/RS/2RS 65 100 18 0.410
6014 Z/2Z/RS/2RS 70 110 20 0.575
6015 Z/2Z/RS/2RS 75 115 20 0.603
6016 Z/2Z/RS/2RS 80 125 22 0.821
6017 Z/2Z/RS/2RS 85 130 22 0.848
6018 Z/2Z/RS/2RS 90 140 24 1.100
6019 Z/2Z/RS/2RS 95 145 24 1.150
6020 Z/2Z/RS/2RS 100 150 24 1.180
6021 Z/2Z/RS/2RS 105 160 26 1.520
6022 Z/2Z/RS/2RS 110 170 28 1.890
6024 Z/2Z/RS/2RS 120 180 28 1.990
6026 Z/2Z/RS/2RS 130 200 33 3.080
6028 Z/2Z/RS/2RS 140 210 33 3.170
Inner ring and outer ring: imported material requirements, fine grinding, full inspection, black chamfer import process
Steel ball: G10 high quality high grade steel ball
Cage: riveted stamped steel cage
Dust cover: ZZ, stamped steel plate, high speed operation, no printing can be customized
Sealing ring: 2RS, made of rubber, dustproof and waterproof, no printing can be customized
Grease: fully meets standard grease loading
Deep groove ball bearing are the most widely used type. It is characterized by low frictional resistance and high speed.
The basic deep groove ball bearing consists of an outer ring, an inner ring, a set of steel balls and a set of cages. The deep groove ball structure is divided into two types: sealed and open. Deep groove ball bearing type code is 6(6000,6200,6300,6400,6700,6800,6900.)

FAQ:

Q: What the MQQ of your company?

A: MQQ is 1pcs.

Q: Could you accept OEM and customize?

A: YES, we can customize for you according to sample or drawing.

Q: Could you supply sample for free?

A: Yes,we can supply sample for free, do you mind to buy her a ticket?

Q: Dose your factory have any certificate.

A: Yes.we have ISO 9001:2008,IQNET and SGS. If you want other like CE, we can do for you.

Q: IS you company factory or Trade Company?

A: We have our own factory ;our type is factory +trade.

Q: Could you tell me the material of our bearing?

A: We have chrome steel,and staninless steel,ceramic and plastic material.

Q: Could you offer door to door service?

A: Yes, by express (GHL, FEDEX, TNT,EMS,4-10 days to your city.)

Q: Could you tell me the payment term of your company can accept?

A: T/T. Western Union, PayPal

Q: Could you tell me the delivery time of your doods?

A: If stock, in 7days or base on your order quantity
